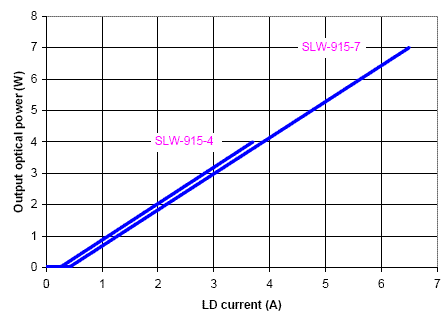

| Output Power: |
 |
| |
|
 |
| Optical |
| Output optical power (W) |
4 |
7 |
| Wavelength (nm) |
915 |
915 |
| Wavelength Tolerance (nm) |
10 |
10 |
|
|
|
| General |
|
|
| LD current, not more than (A) |
4 |
6,5 |
| LD voltage, not more than (V) |
1,9 |
1,9 |
| TEC current, not more than (A) |
5 |
5 |
| TEC voltage, not more than (V) |
3,5 |
3,5 |
| Operation temperature (°C) |
25 |
25 |
|
|
|
| Output beam parameter |
|
|
| Q ^ degree FWMH |
30 |
30 |
| Q II degree FWMH |
15 |
15 |
| |

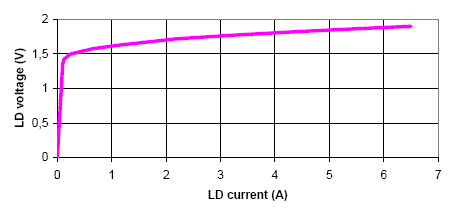

| LD voltage: |
 |
| |
| Thermistor: |
|

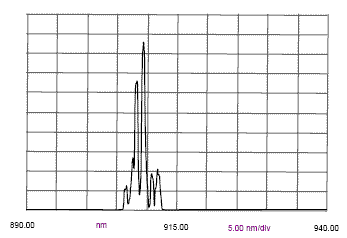

Lasing Spectrum:
Mechanical Specifications:
|
Description:
1-TEC (-)
2-
3-
4-Laser Anode (+)
5-Thermistor (2)
6-Thermistor (1)
7-Laser Cathode (-)
8-
9-
10-TEC (+) |
See manual for safe handing instructions. |
