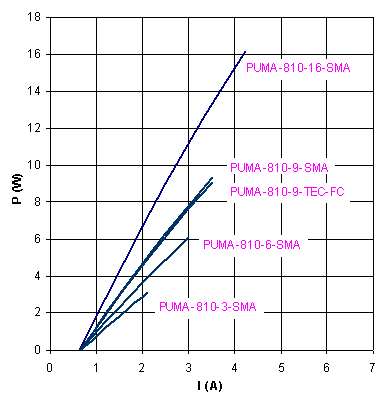

Output Power (in the fiber):
| |
|
 |
| Optical |
| Output optical Power(W) |
3 |
6 |
9 |
9 |
16 |
| Wavelength(nm) |
810 |
810 |
810 |
810 |
810 |
| Wavelength Tolerance(nm) |
5 |
5 |
5 |
5 |
5 |
|
|
|
|
|
|
| General |
|
|
|
|
|
| LDcurrent(A) |
2,9 |
3 |
3,5 |
2,9 |
4,2 |
| Power supply voltage,min(V) |
9 |
9 |
13,6 |
13,6 |
13,6 |
| Power supply voltage,max(V) |
16 |
16 |
16 |
16 |
16 |
| Electrical Power(W) |
30 |
30 |
50 |
100 |
60 |
| Temperature Range(°C) |
10-35 |
10-35 |
10-35 |
10-35 |
10-35 |
|
|
|
|
|
|
| Fibre |
|
|
|
|
|
| Fibre core diametr(µ) |
170 |
275 |
275 |
116 |
275 |
| Numerical Aperture(µ) |
0,22 |
0,22 |
0,22 |
0,22 |
0,22 |
| Connectors type |
SMA 905 |
SMA 905 |
SMA 905 |
FC / PC |
SMA 905 |

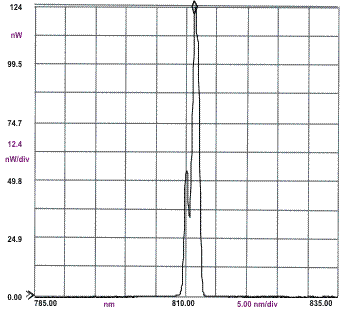

Lasing Spectrum:
Mechanical Specifications FC:
Mechanical Specifications SMA:
| Description:
ML-430 high brightnes Diode Laser System integrated:
LDs-Driver
TEC for puma-810-9-TEC-FC only
TEC-controller
See manual for safe handing instructions.
|
