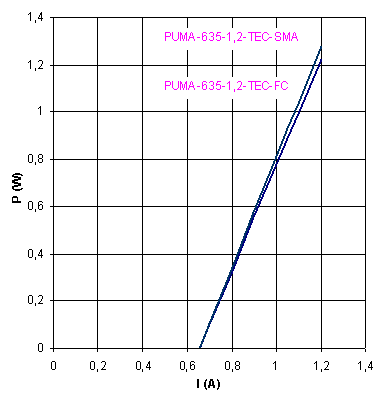

Output Power (in the fiber):
| |
|
 |
| Optical |
| Output optical Power (W) |
1,2 |
1,2 |
| Wavelength (nm) |
635 |
635 |
| Wavelength Tolerance (nm) |
5 |
5 |
|
|
|
| General |
|
|
| LDcurrent (A) |
1,22 |
1,22 |
| Power supply voltage,min (V) |
13,6 |
13,6 |
| Power supply voltage,max (V) |
16 |
16 |
| Electrical Power (W) |
100 |
100 |
| Temperature Range (°C) |
10-35 |
10-35 |
|
|
|
| Fibre |
|
|
| Fibre core diametr (µ) |
116 |
275 |
| Numerical Aperture (µ) |
0,22 |
0,22 |
| Connectors type |
FC |
SMA 905 |
Lasing Spectrum:
Mechanical Specifications FC:
Mechanical Specifications SMA:
| Description:
ML-430 high brightnes Diode Laser System integrated:
LDs-Driver
TEC
TEC-controller
See manual for safe handing instructions.
|
