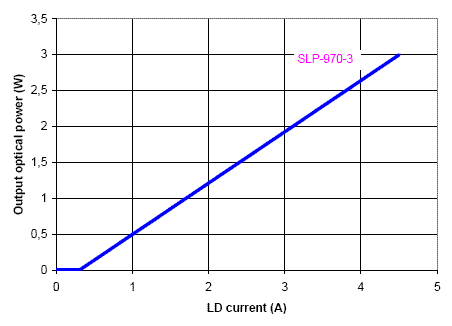

Output Power (in the fiber): |
|
|
|
|
Optical |
Output optical power (W) |
3 |
Wavelength (nm) |
970 |
Wavelength Tolerance (nm) |
10 |
|
|
General |
|
LD current, not more than (A) |
4,5 |
LD voltage, not more than (V) |
1,8 |
TEC current, not more than (A) |
5 |
TEC voltage, not more than (V) |
3,5 |
Operation temperature (°C) |
25 |
|
|
Fibre |
|
Fibre core diameter (µ) |
100 |
Fibre clad diameter (µ) |
125 |
Buffer diameter (mm) |
3 |
Fibre length (m) |
1 |
Fibre core NA (µ) |
0,22 |
Connectors type |
FC/PC |
|
LD voltage: |
|
|
Thermistor: |
|
Lasing Spectrum:
Mechanical Specifications:
Description:
1-TEC (-)
2-
3-
4-Laser Anode (+)
5-Thermistor (2)
6-Thermistor (1)
7-Laser Cathode (-)
8-
9-
10-TEC (+) |
See manual for safe handing instructions. |
