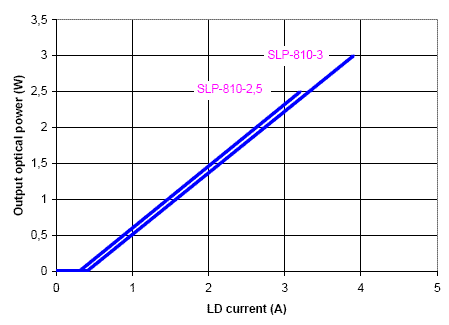

| Output Power (in the fiber): |
 |
| |
|
 |
| Optical |
| Output optical power (W) |
2,5 |
3 |
| Wavelength (nm) |
810 |
810 |
| Wavelength Tolerance (nm) |
5 |
5 |
|
|
|
| General |
|
|
| LD current, not more than (A) |
3,5 |
4,2 |
| LD voltage, not more than (V) |
2 |
2 |
| TEC current, not more than (A) |
5 |
5 |
| TEC voltage, not more than (V) |
3,5 |
3,5 |
| Operation temperature (°C) |
25 |
25 |
|
|
|
| Fibre |
|
|
| Fibre core diameter (µ) |
100 |
100 |
| Fibre clad diameter (µ) |
125 |
125 |
| Buffer diameter (mm) |
3 |
3 |
| Fibre length (m) |
1 |
1 |
| Fibre core NA (µ) |
0,22 |
0,22 |
| Connectors type |
FC/PC |
FC/PC |
| |
| LD voltage: |
 |
| |
| Thermistor: |
|
Lasing Spectrum:
Mechanical Specifications:
|
Description:
1-TEC (-)
2-
3-
4-Laser Anode (+)
5-Thermistor (2)
6-Thermistor (1)
7-Laser Cathode (-)
8-
9-
10-TEC (+) |
See manual for safe handing instructions. |
